Thats it. Click a pick to be linked to their respective sites for more info. The pedals are shown in the order I use them with the Ibanez DL10 going to the amp and the Crybaby to my guitar.
The 1/2 and 3/4 outputs of the Delta 44 is sent into the stereo channels of the mixer with the synth using 2 channels (L and R) and the mic with phantom power in the third. I occasionally use the direct out of the Marshall and go straight into the mixer. The main outs are sent back into the sound card and the Control Room outs to the Kenwood. My old SBPCI128 goes into the tape in (for CDs.)
Additional equipment:
Dixon MD1600 mic; Raimundo classical guitar, cheap Casio keyboard with MIDI.
| Yamaha FS1R | ||||
 |
||||

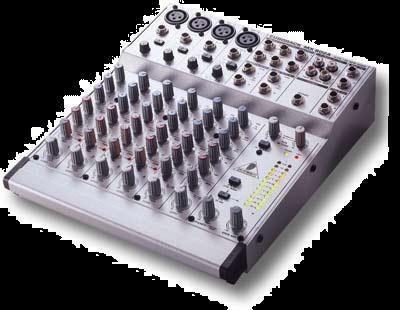

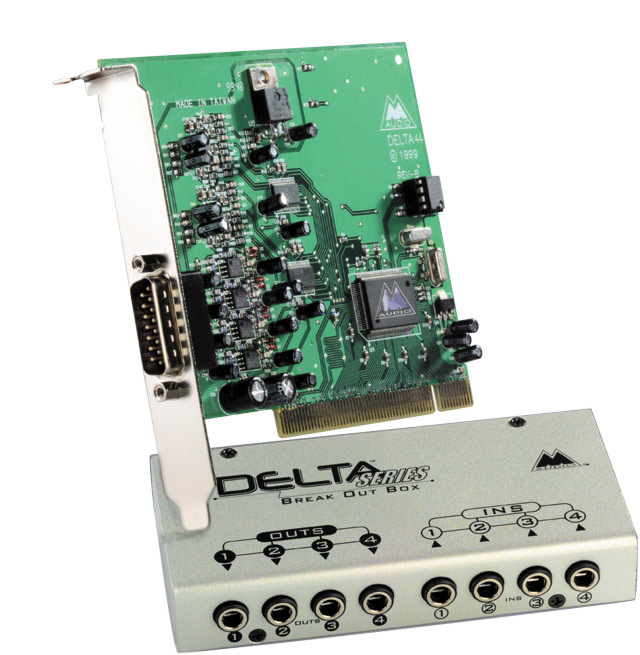

| Yamaha SU200 | Behringer MX 802A | M-Audio Delta 44 | ||
 |
 |
 |
||

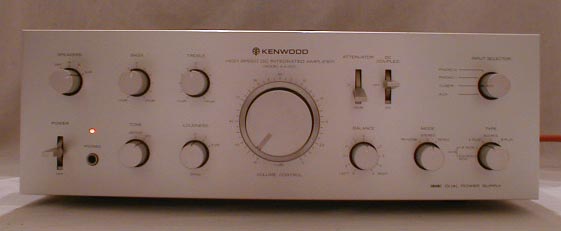

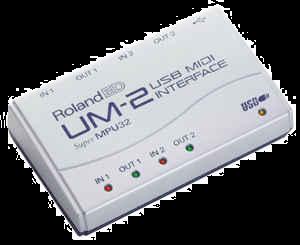

| RolandED UM-2 | Kenwood KA-701 | Actually a KA-601 is pictured. no 701 pic available. (Just imagine more knobs. ; ) ) | ||
 |
 |
|||

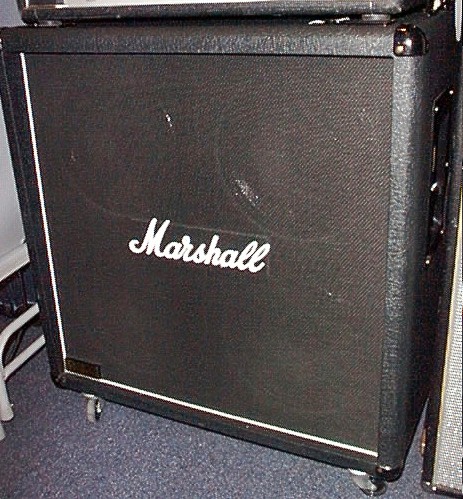

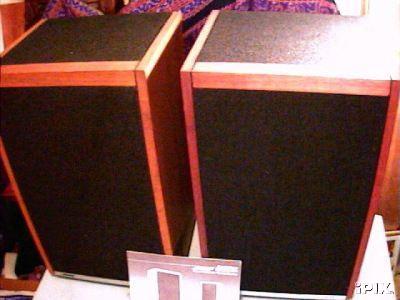

| Bose Model 601 Direct/Reflect | Marshall 1960A w/ Celestion 75's 12" | |||
 |
 |
|||

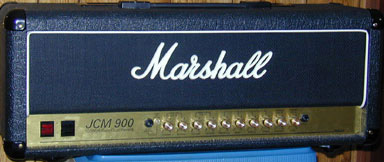

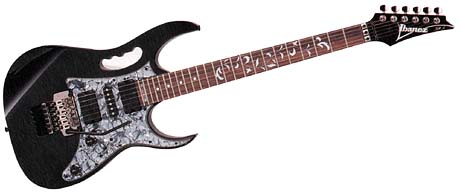

| Ibanez JEM 555 Steve Vai | Marshall JCM 900 MkIII | |||
 |
 |
|||
| Picture it white : ) | ||||

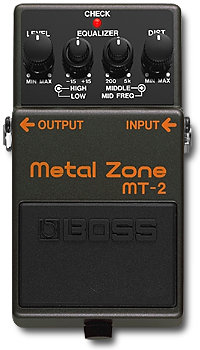

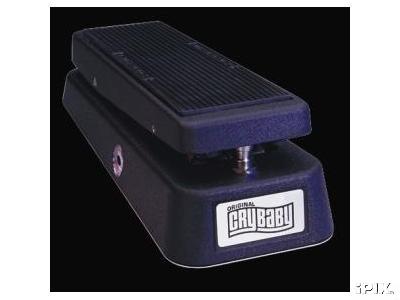

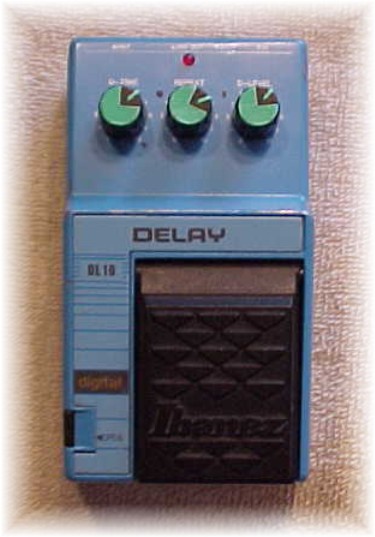

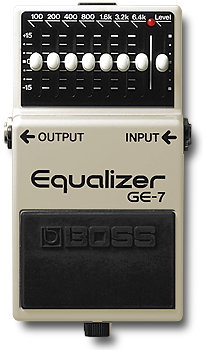

| Ibanez DL10, Danelectro Cool Cat, Boss GE-7 and MT-2, and Dunlop GCB-95 | ||||
 |
 |
 |
 |
 |

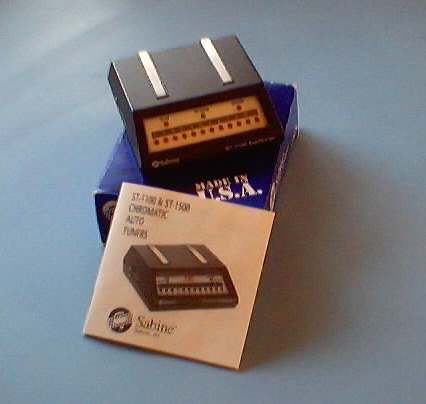

| EMG 81 and 89 Pickups | Sabine ST-1100 | |||
  |
 |
|||
| The following cable brands are used: | ||||
  |
 |
|||
